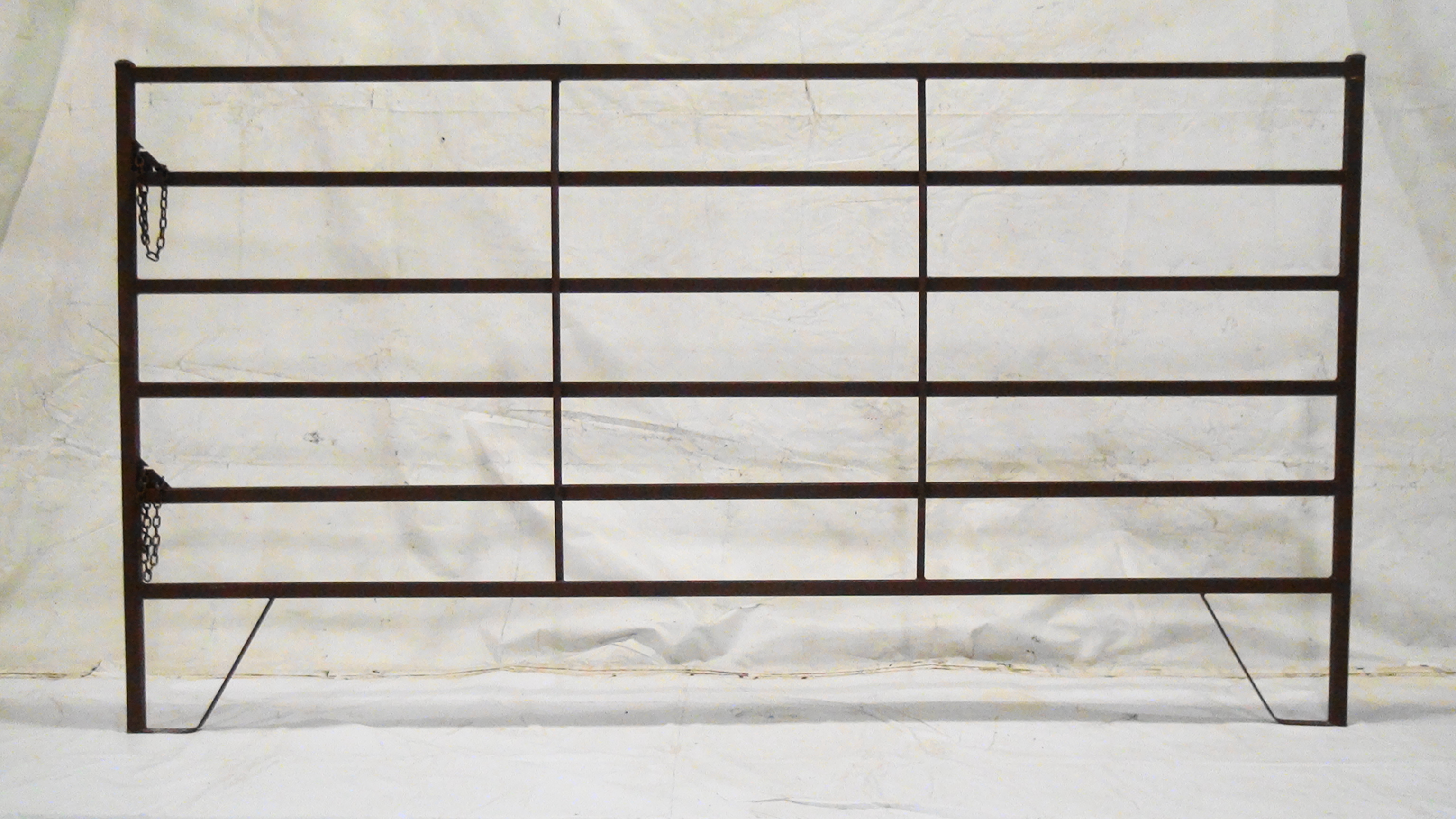

Portable panels are built with 1-1/2" x 14ga high tensile tubing for the rails which is the same as
the continuous fence panels.
The ends for the portable panels are made of 1-1/2" x 14ga square.
We use the same 5/8" solid rod for the uprights on portable panels as we do on the continuous panels and they are also welded solid on three sides.
The portable panels come with six rails and are 5' 8" tall and are available in 10' or 12' lengths.
The mud foot that we use on the portable panels is a 3/16" thick flat bar to help keep them from settling in the mud as much.
To make the portable panels easy for a one man operation, we use 2 chains and latches at one end of each portable panel so that they join together on level or uneven ground and also to any other portable panels.
10' Portable Panels will weigh approximately 100lbs each
12' Portable Panels will weigh approximately 115lbs each
The ends for the portable panels are made of 1-1/2" x 14ga square.
We use the same 5/8" solid rod for the uprights on portable panels as we do on the continuous panels and they are also welded solid on three sides.
The portable panels come with six rails and are 5' 8" tall and are available in 10' or 12' lengths.
The mud foot that we use on the portable panels is a 3/16" thick flat bar to help keep them from settling in the mud as much.
To make the portable panels easy for a one man operation, we use 2 chains and latches at one end of each portable panel so that they join together on level or uneven ground and also to any other portable panels.
10' Portable Panels will weigh approximately 100lbs each
12' Portable Panels will weigh approximately 115lbs each

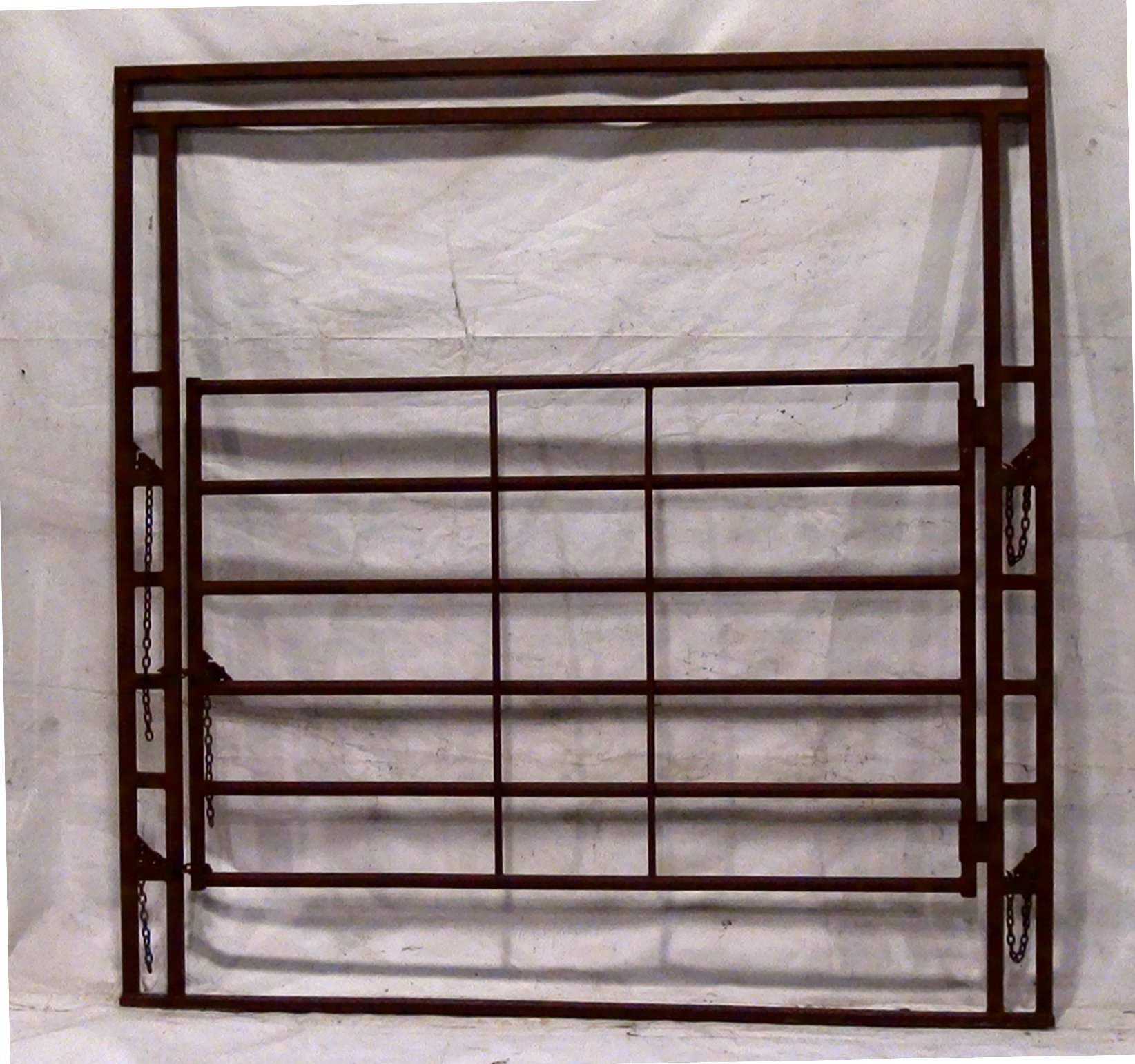

Bowgate rails built with 1-1/2" x 14ga round
Uprights are 5/8" solid rod just like the portable panels
Overall height of the bowgate is 8'
4', 6', 8', 10' and 12' bowgate sizes available
1-1/2" x 11ga square bottom rail to last longer sitting in the mud
Two chains on each end of the bowgates are used to connect to any portable panels

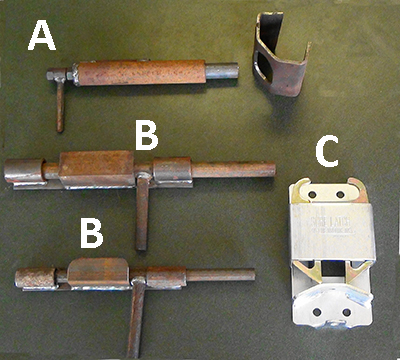

Bowgates all come standard with a chain latch but can be ordered with spring latches (A),
slide bolt latches large or small (B) or slam latches (C).

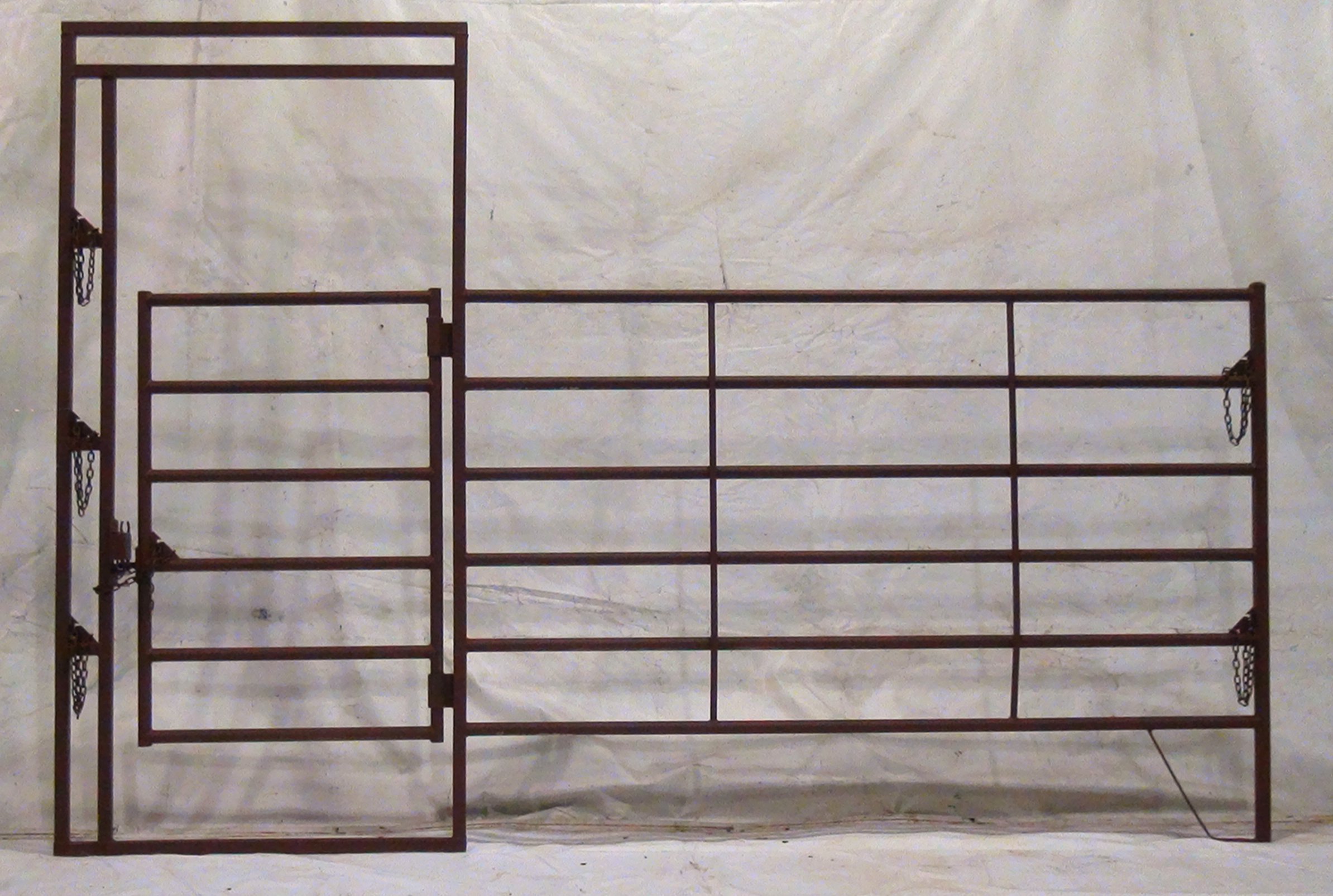

The above photo shows an 8' portable panel with a 4' bowgate making a 12' overall section.
Also available is a 6' portable panel with a 4' bowgate making a 10' overall section
Also available is a 6' portable panel with a 4' bowgate making a 10' overall section

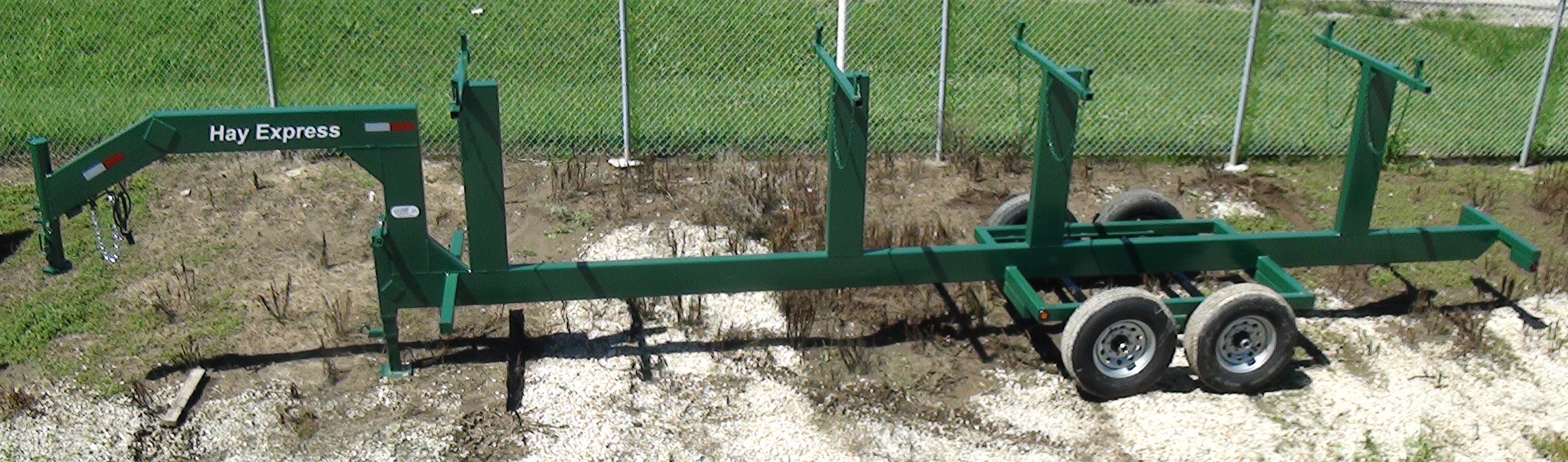

The double portable trailer from Corbin Steel will haul 40 portable panels from 8' up to 12'
in length.
The main rame of the double portable panel trailer is 10" x 4" x 3/16" rectangle tube.
The neck is 10" x 4" x 1/4" rectangle tube which is the same as the Hay Express Self Unloading Inline Hay Trailer
The double portable panel trailer comes with two 6K axles (1 brake, 1 idler) and also comes with LED lights.
The hitch on the double panel trailer is a 2-5/16" gooseneck rated at 25k and the jack is rated at 12K.
The main rame of the double portable panel trailer is 10" x 4" x 3/16" rectangle tube.
The neck is 10" x 4" x 1/4" rectangle tube which is the same as the Hay Express Self Unloading Inline Hay Trailer
The double portable panel trailer comes with two 6K axles (1 brake, 1 idler) and also comes with LED lights.
The hitch on the double panel trailer is a 2-5/16" gooseneck rated at 25k and the jack is rated at 12K.

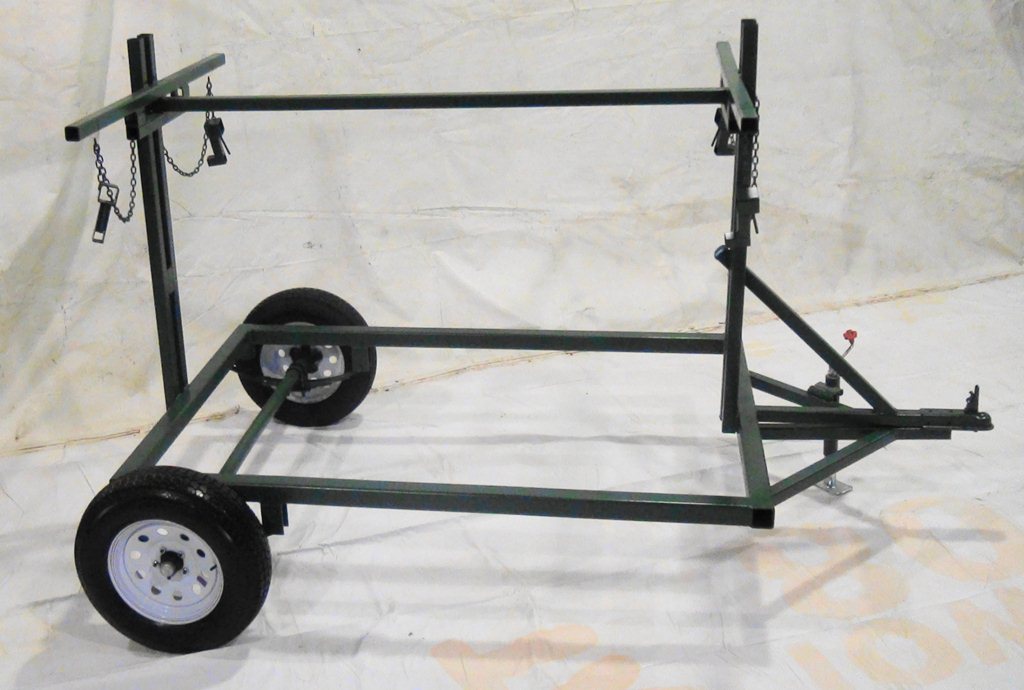

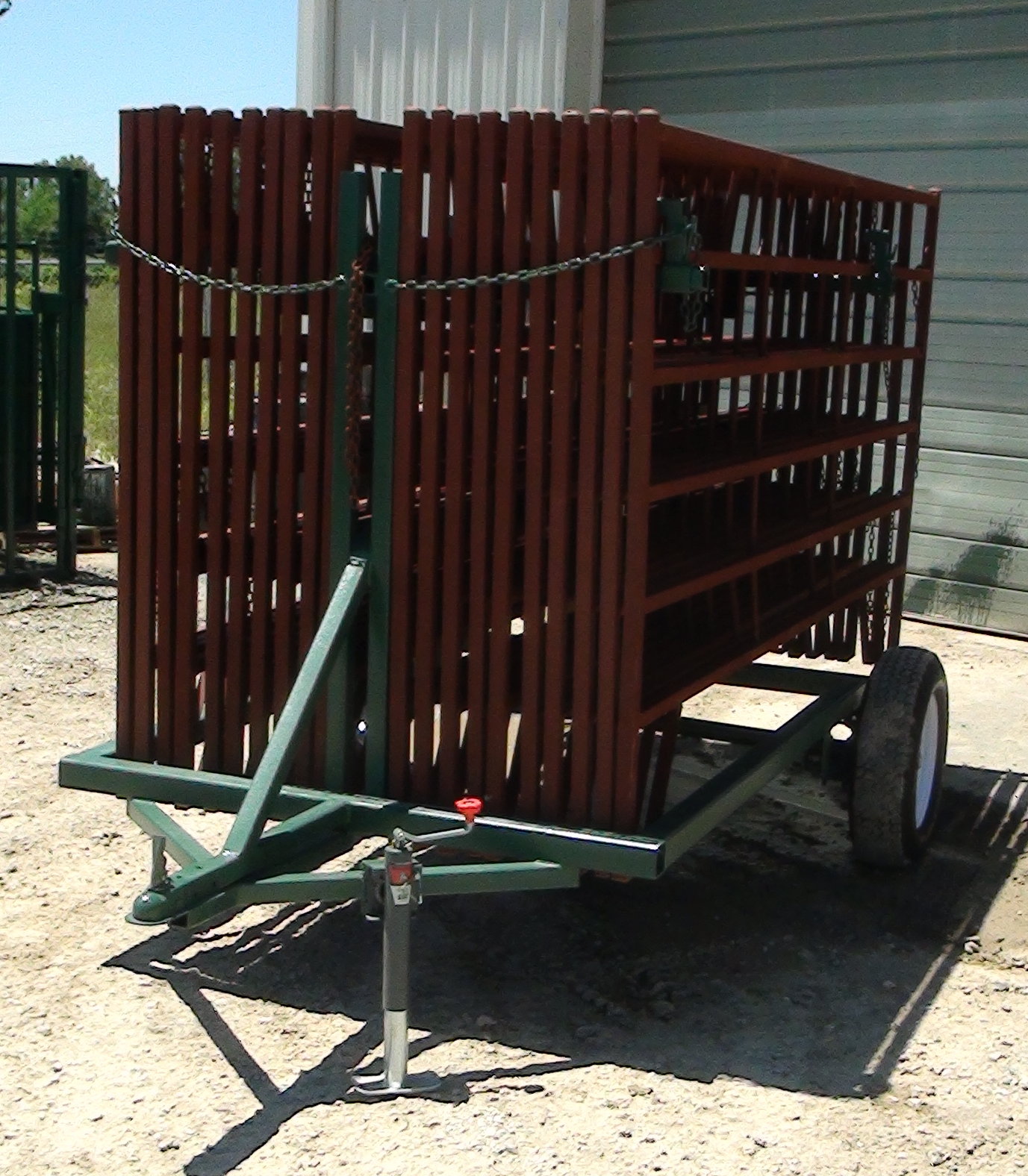

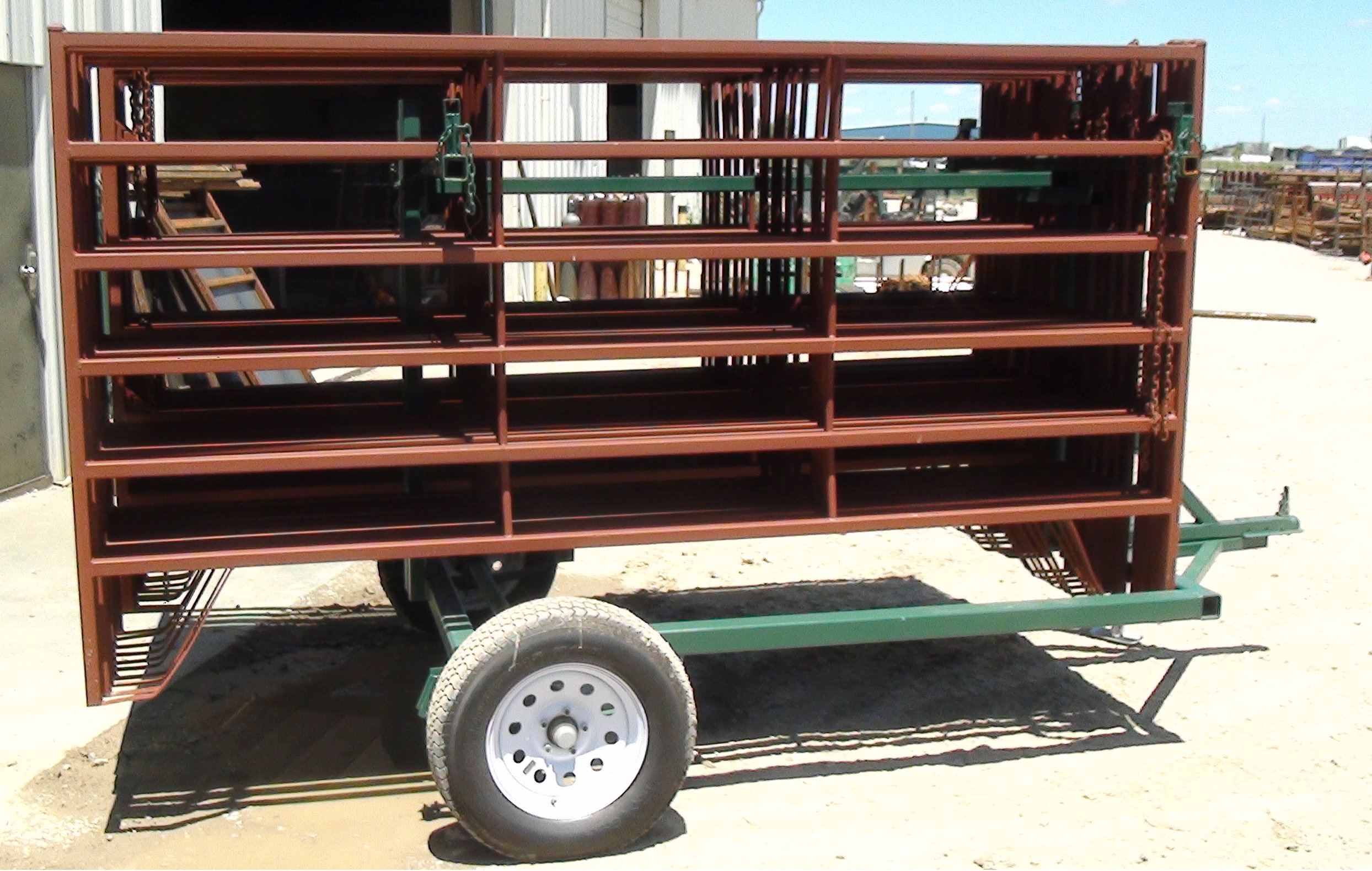

The single axle portable panel trailer from Corbin Steel will haul 20 portable
panels from 8' long up to 13' long and still have the weight distributed evenly.
The chains that are used to secure the panels on the portable panel trailer are 1/4".
The hitch for the portable panel trailer takes a 2" ball to tow.
The chains that are used to secure the panels on the portable panel trailer are 1/4".
The hitch for the portable panel trailer takes a 2" ball to tow.
The portable panel trailer will come with 1-3500lb idler axle and new 15" radial tires and wheels.
The portable panel trailer frame is made with 3" x 3" x 1/4" square tube.
The upright posts and hanger rails of the portable panel trailer are 2" x 2" x 3/16" square tube.
The portable panel trailer frame is made with 3" x 3" x 1/4" square tube.
The upright posts and hanger rails of the portable panel trailer are 2" x 2" x 3/16" square tube.
