• The Corbin Steel Livestock Crowding Tubs are made with 3" x 2" x 11ga rectangle tubing
  • The crowd gates for the livestock crowding tubs are made of 1 1/2" x 1 1/2" x 11ga square tubing
  • The livestock crowding tub gates have a 7' overall height
  • The livestock crowding tub curved sections have a 6' overall height
  • The overall sheeted height of the livestock crowding tub is 5'
  • The livestock crowding tub and crowding tub gate are sheeted with 14ga sheeting
  • All parts of the livestock crowding tub crowding tub gate that sit flat on the ground are made of 3/16" thick steel to ensure they will not rust out over a long period of time
  • All livestock crowding tubs are primer coated and then painted
  • Corbin Steel Livestock Crowding Tubs come with two exits as shown in the video and photos below. The 180 tubs come with three.

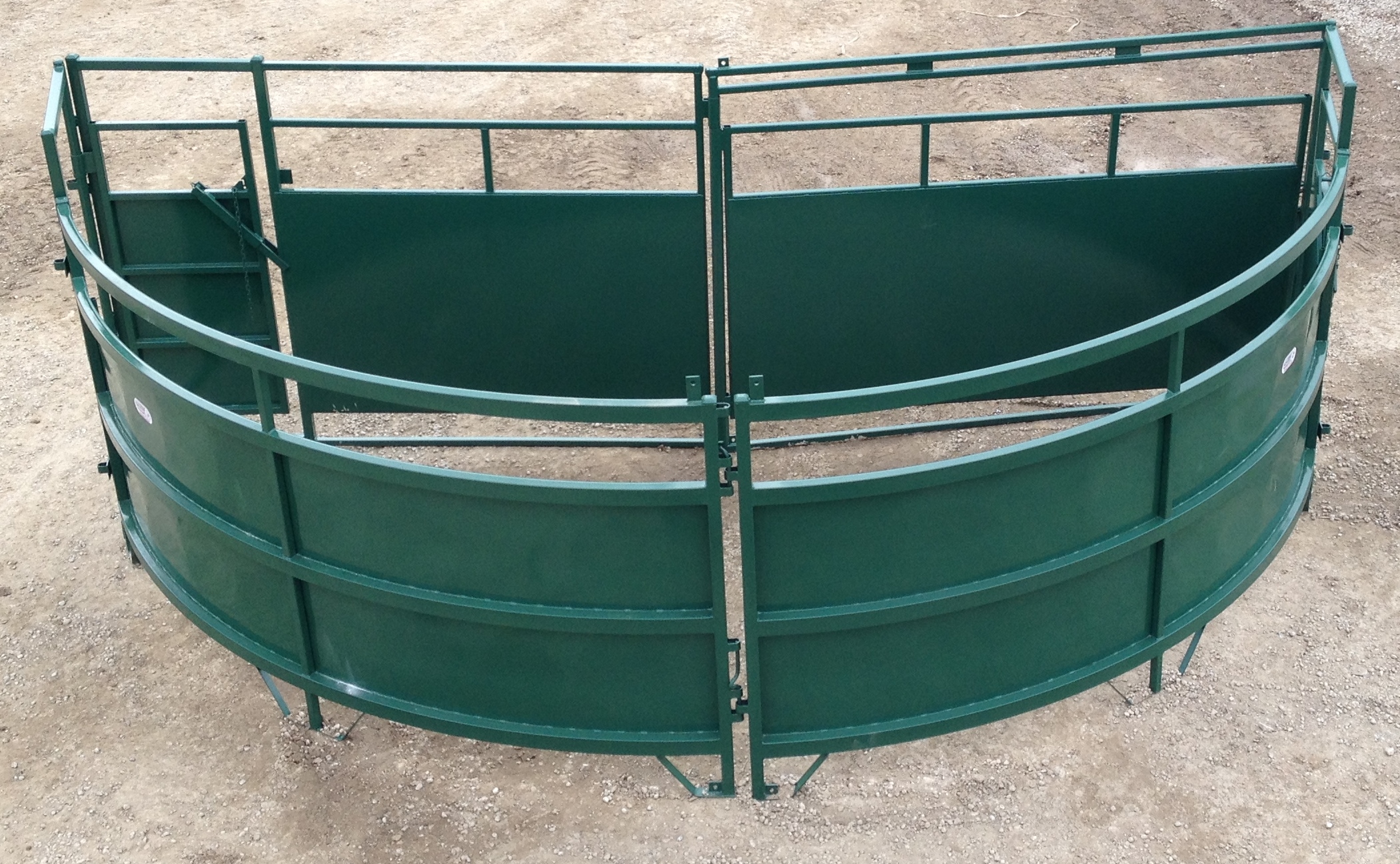

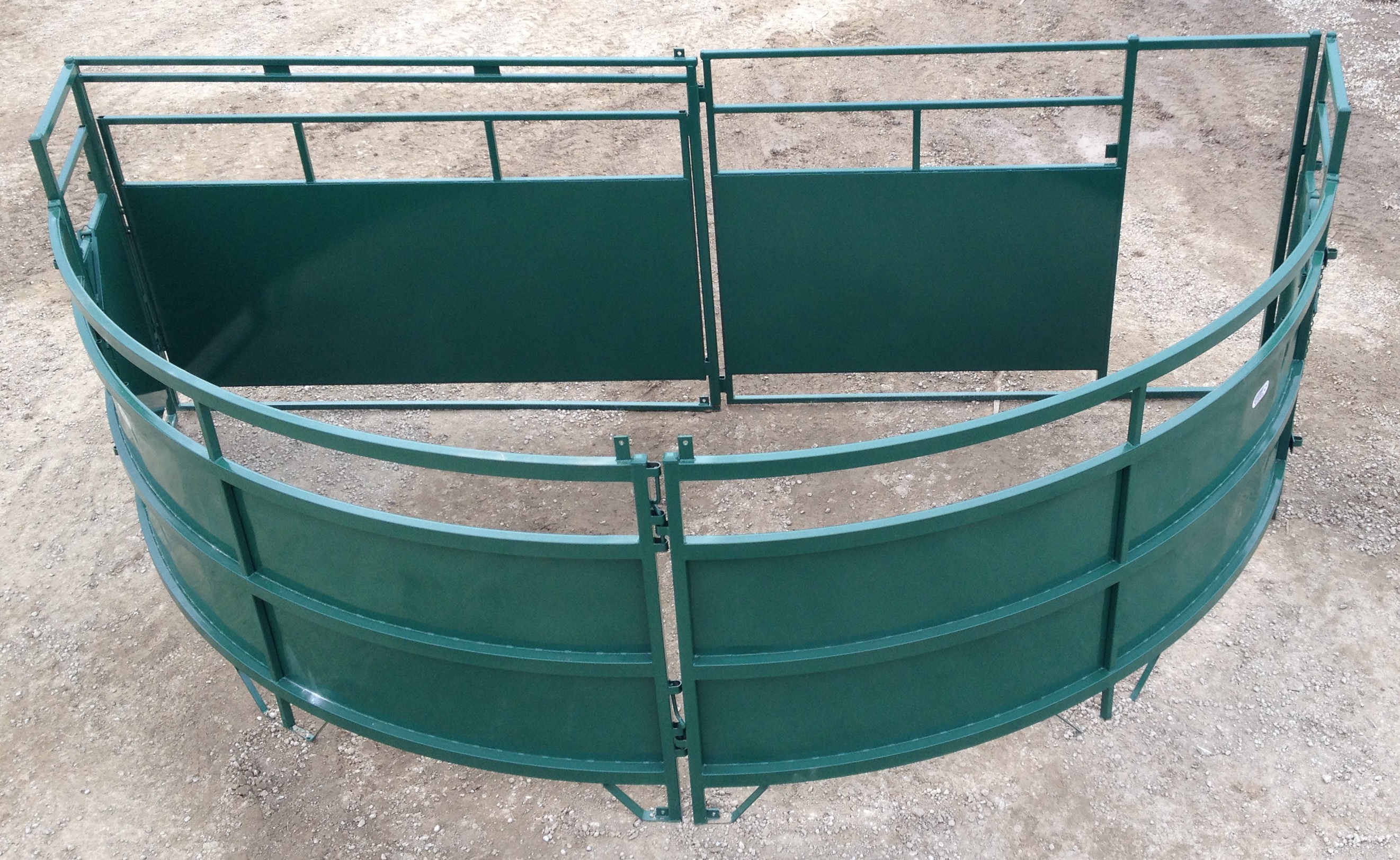

The two photos above show a right hand or counterclockwise 180 degree livestock crowding tub and also shows the dual exits where the cattle will leave the tub. To see the third exit in action take a look at the video above .

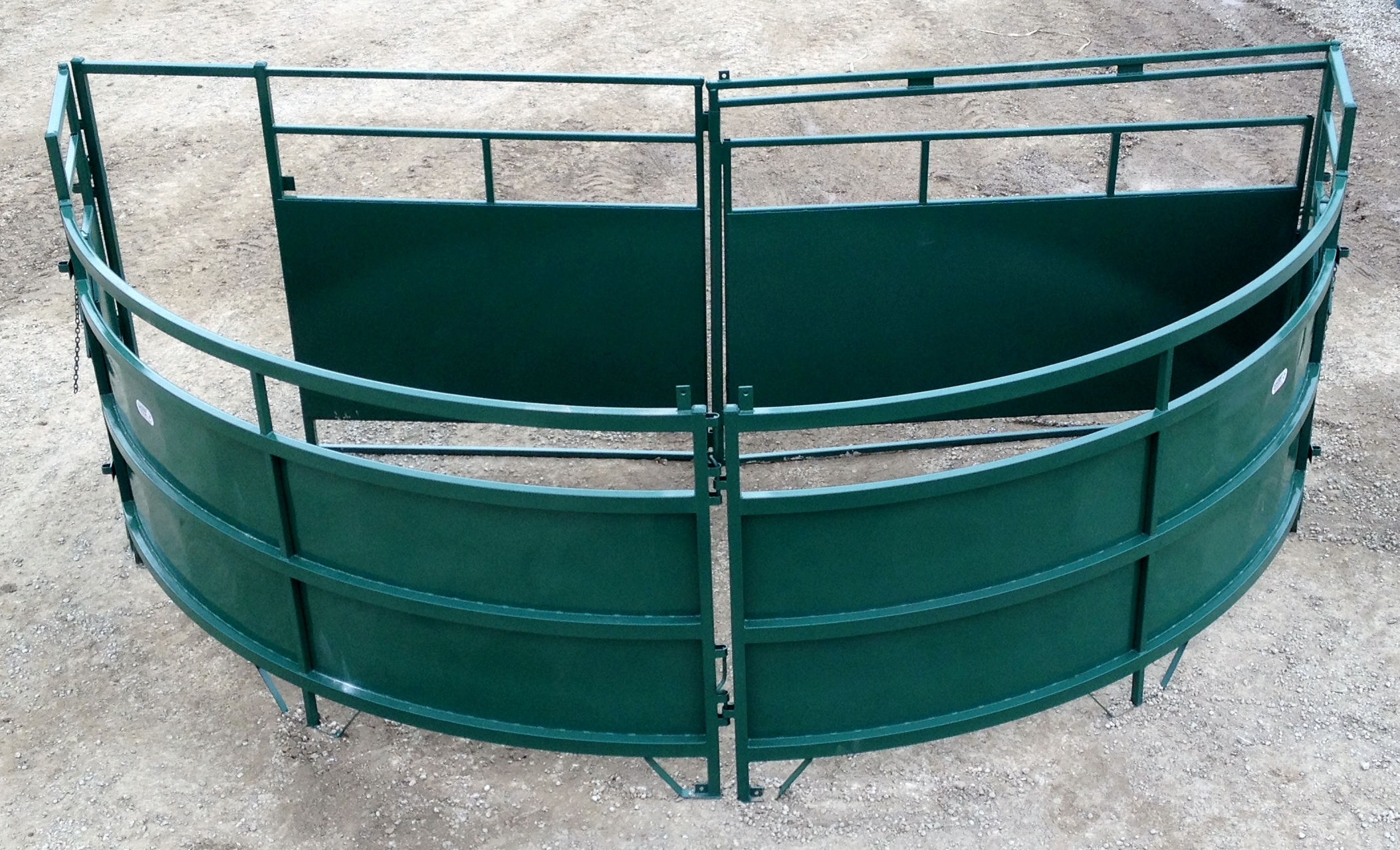

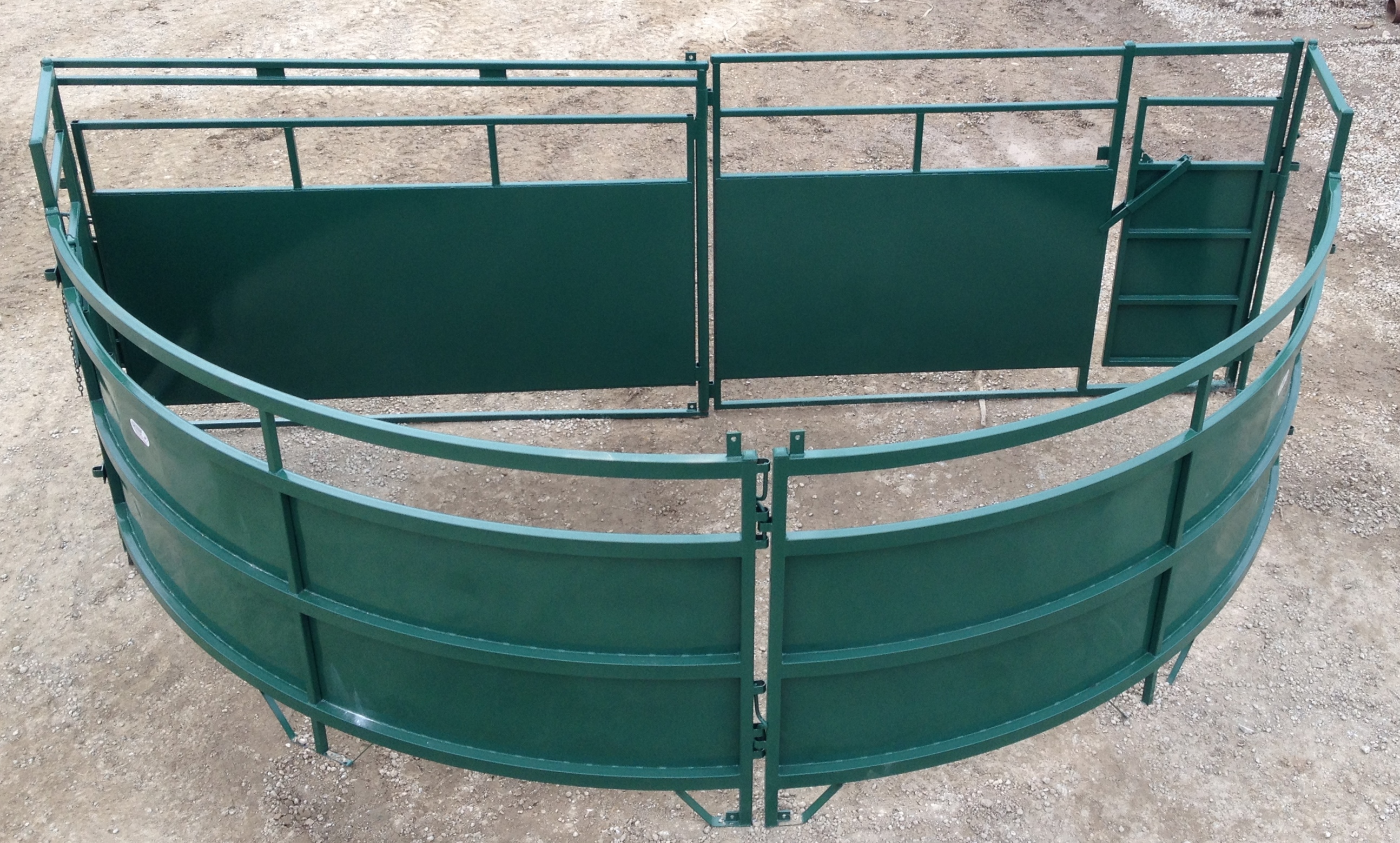

The two photos above show the left hand or clockwise 180 degree crowding tub with dual exits. The video will show better how and where all three exits are on the crowding tubs.

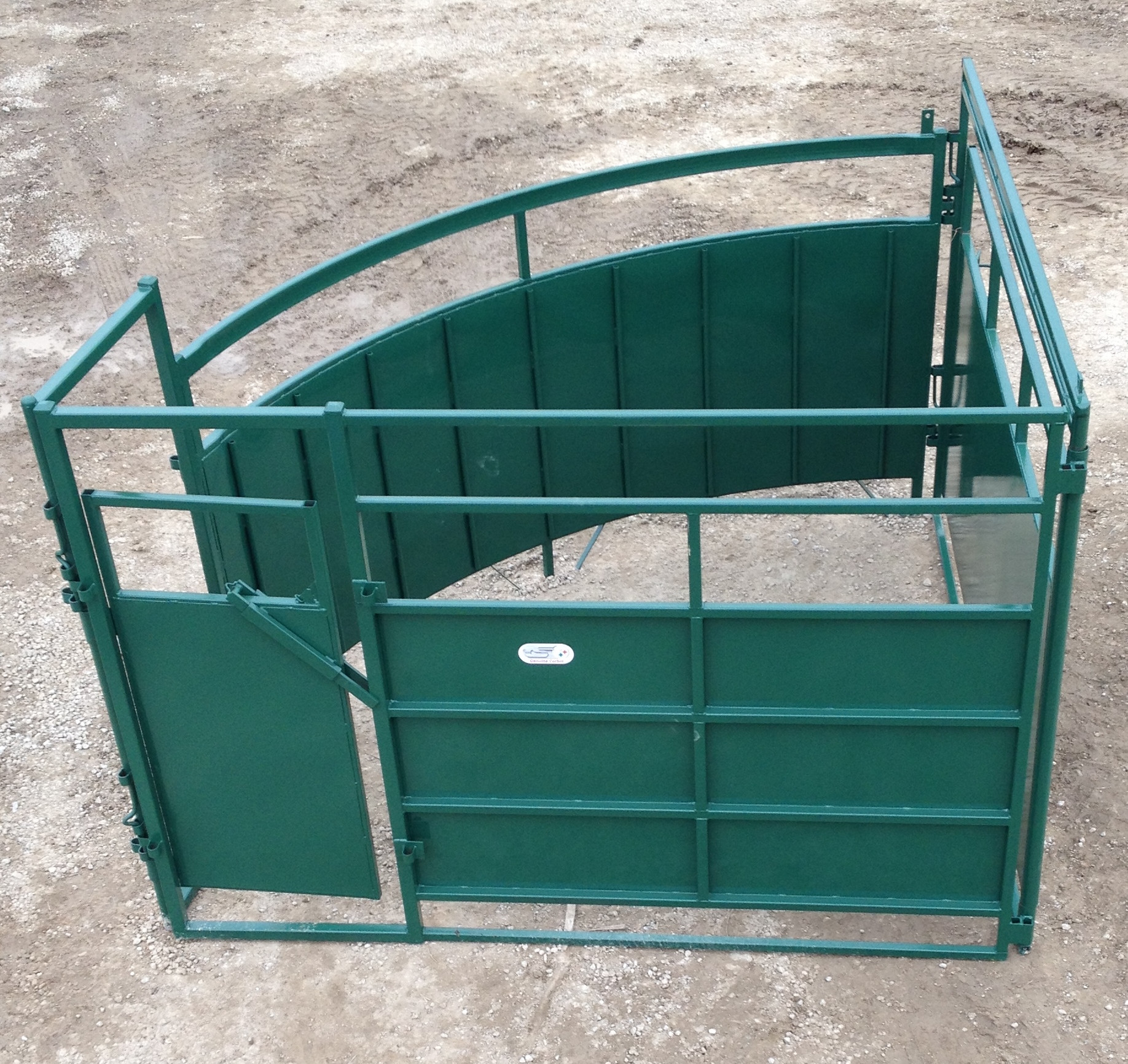

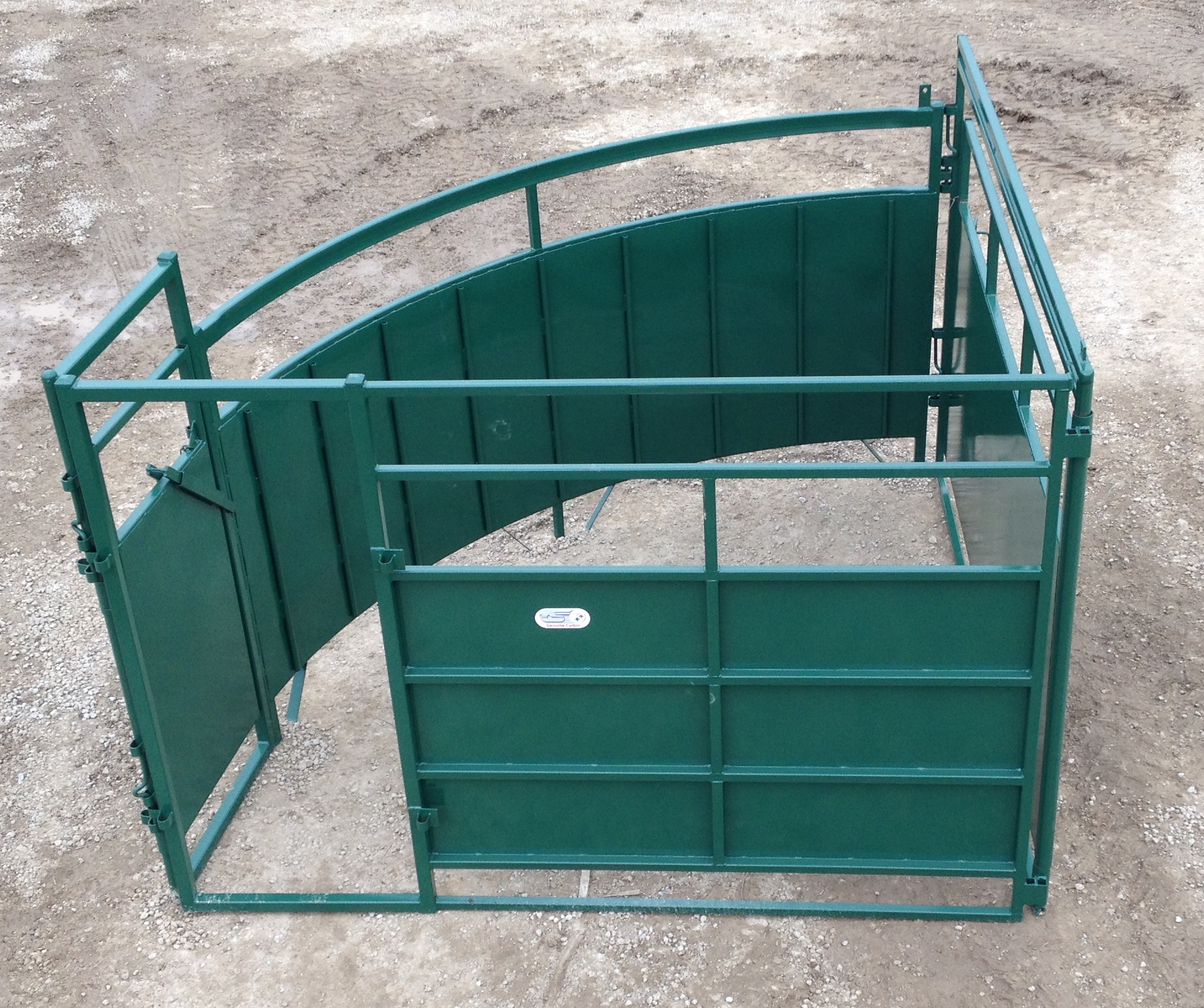

The photos above show a right hand or counterclockwise 90 degree livestock crowding tub. To assemble any and all of the Corbin Steel Livestock Crowding Tubs, hook them together with the pins and tabs. Hooking the livestock crowding tubs up this way makes them very versatile for someone with more than one location. .

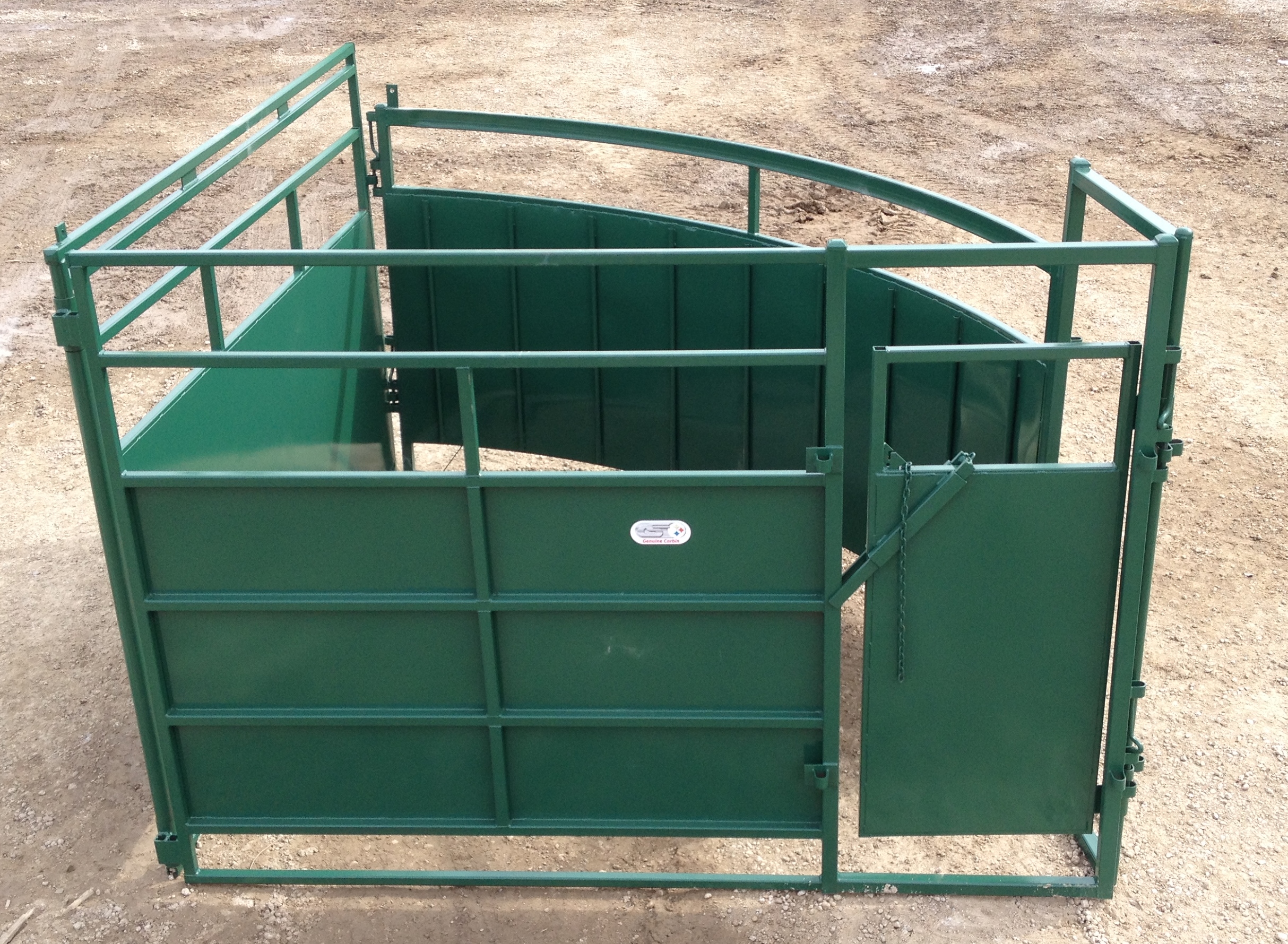

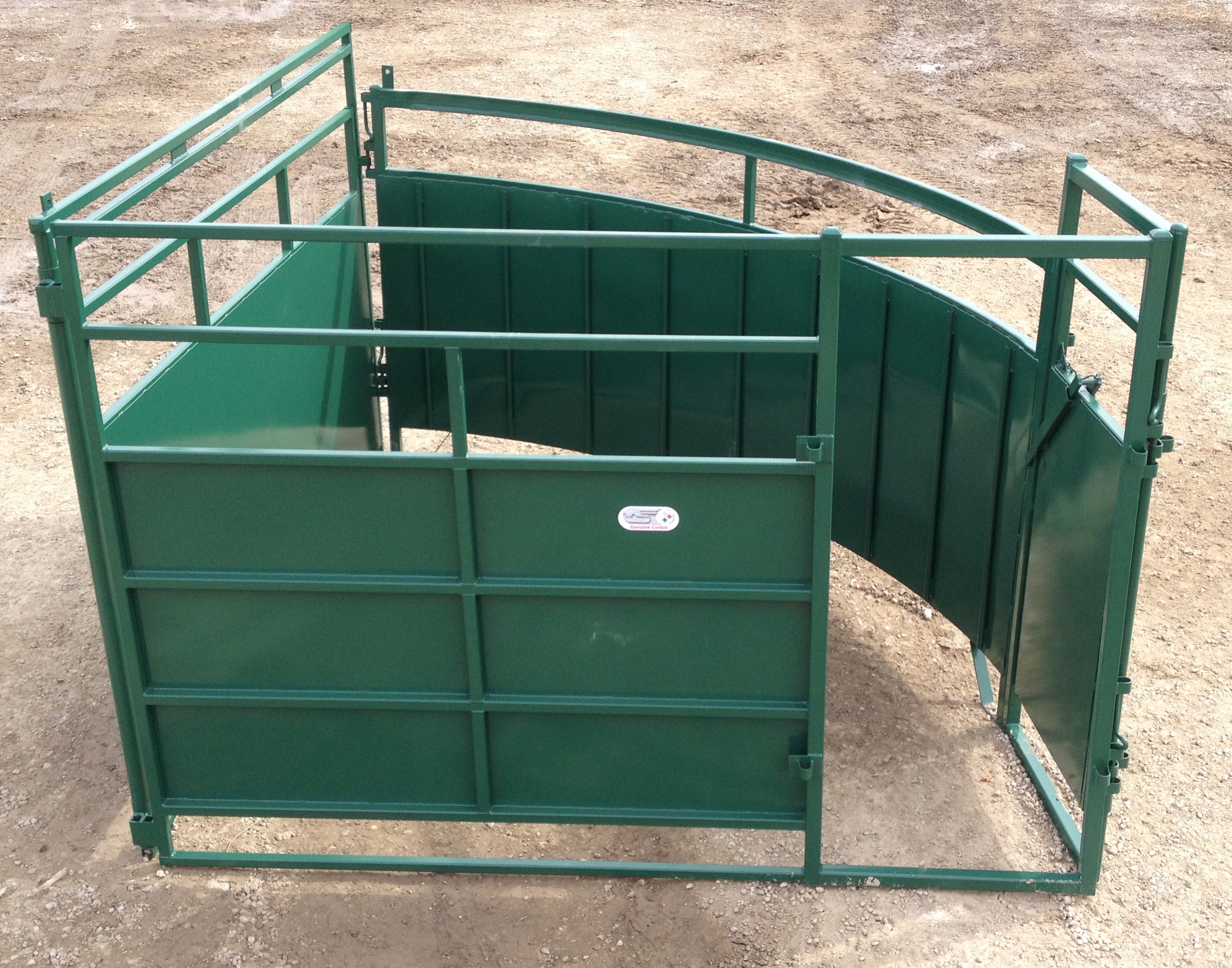

The photos above show a 90 degree left hand or clockwise crowding tub. As you can see, all of the livestock crowding tubs have two exits so they are able to be used for multiple functions.
