All Corbin Steel Continuous Fence panels come in 20' sections and are available in 1 1/4" x 14ga or
1 1/2" x 14ga #1 high tensile tube. The continuous fence panels we beuild have even spacing between
the uprghts so that when you put your posts on 10' centers the fence will look like it was build a
stick at a time.
The continuous fence panels are available with four uprights or six uprights and all of the uprights on the continuous fence panels are 5/8" hot rolled rod, not flat strap. We also weld on three sides of the uprights of our continuous fence panels to leep from having rust pockets.
The continuous fence panels are available with four uprights or six uprights and all of the uprights on the continuous fence panels are 5/8" hot rolled rod, not flat strap. We also weld on three sides of the uprights of our continuous fence panels to leep from having rust pockets.

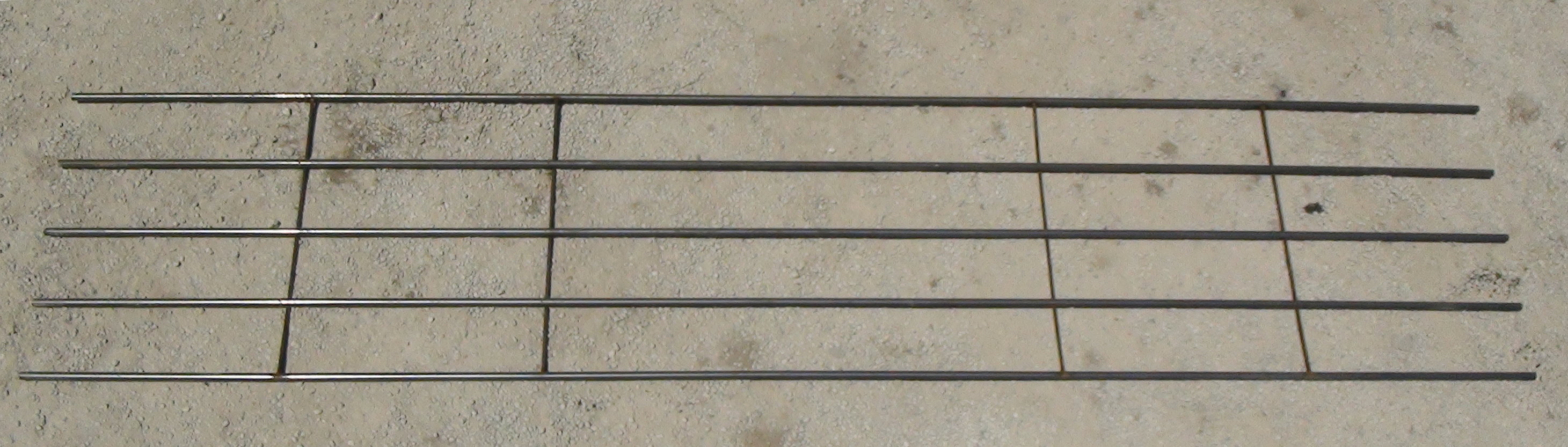

5x4 1-1/4" Continuous Fence Panel
49" tall (10-3/4" rail spacing)
or
40" tall (8-1/2" rail spacing)
Internal or external connectors included
Approximately 115lbs
49" tall (10-3/4" rail spacing)
or
40" tall (8-1/2" rail spacing)
Internal or external connectors included
Approximately 115lbs

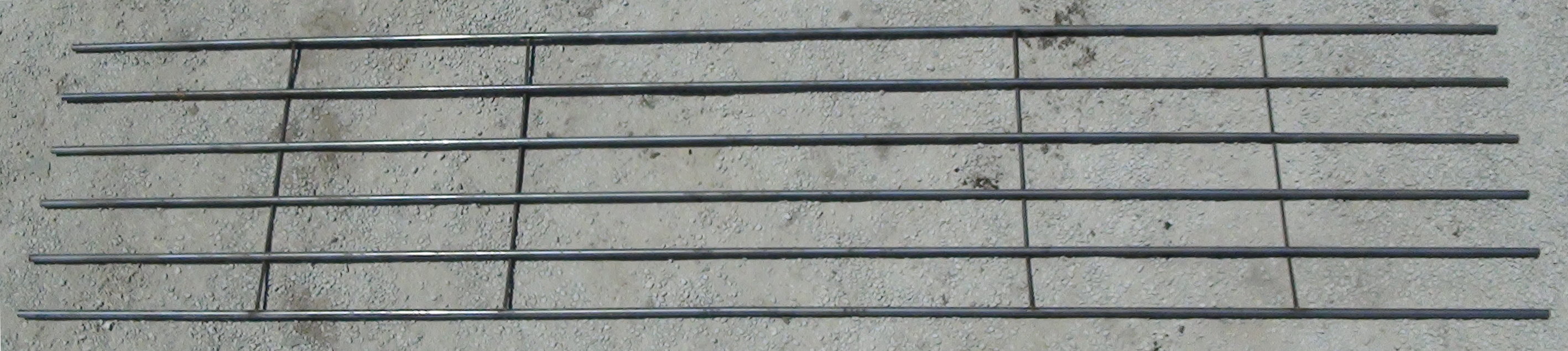

6x4 1-1/4" Continuous Fence Panel
49" tall (8-1/2" rail spacing)
Internal or external connectors included
Approximately 135lbs
49" tall (8-1/2" rail spacing)
Internal or external connectors included
Approximately 135lbs

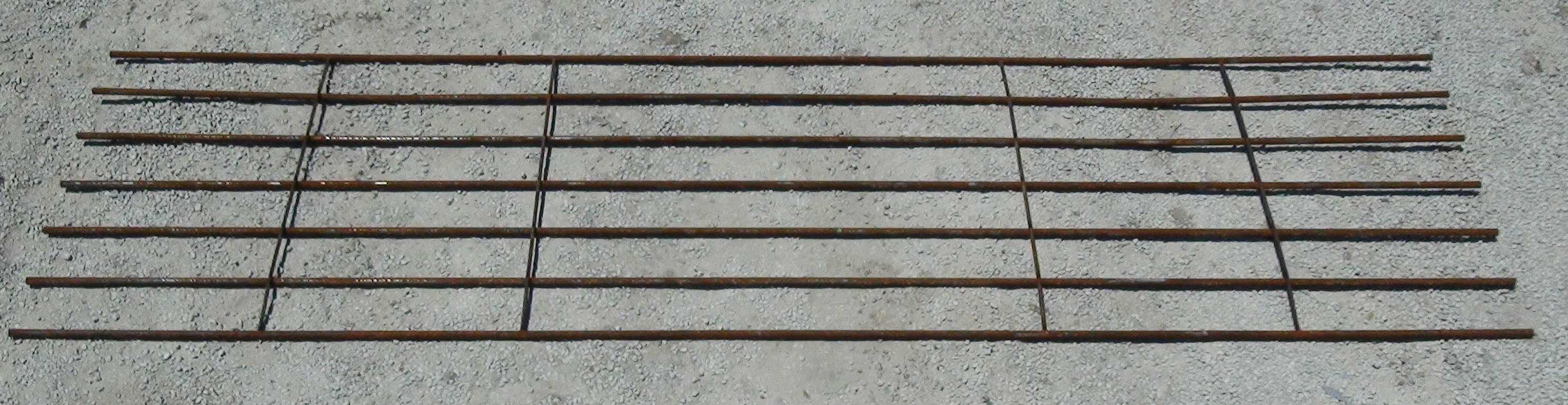

7x4 1-1/4" Continuous Fence Panel
60" tall (8-1/2" rail spacing)
Internal or external connectors included
Approximately 155lbs
60" tall (8-1/2" rail spacing)
Internal or external connectors included
Approximately 155lbs
We have end caps available, as shown in the picture below, to connect the continuous fence panels
to a wood post or building.
We also have the punched clips available to attach the continuous fence panels to wood posts.
We also have the punched clips available to attach the continuous fence panels to wood posts.
